Unit Load Device

ULD Type (IATA Code)	Max Capacity (Tare Weight)	Dimension (Inch)	Utility	Loading possible airCraft Type
LD3 Container (AKE)	1,588 kg (114 kg)	60.4 x 61.5 x64	General Cargo	B747 B747F B777 B777F B787-9 A380 A330 A300 (Lower Deck Only)
LD3 Refrigerated Container (RKN)	1,588 kg (253 kg)	60.4 x 61.5 x 64	Perishable, Frozen Cargo (Non - Temperature)
LD3 Refrigerated Container (RKN)	1,588 kg (276 kg)	60.4 x 61.5 x64	Perishable, Frozen Cargo- Equipped with Automated Temperature System
LD6 Container (ALF)	3,175 kg (210 kg)	60.4 x 125 x 64	General Cargo
LD9 Container (AAP)	6,033 kg (277 kg)	88 x 125 x 64	General Cargo	B747 B747F B777 B777F B787-9 A380 A330 A300
LD9 Refrigerated Container (RAP)	6,033 kg (464 kg)	88 x 125 x 64	Perishable, Frozen Cargo (Non - Temperature)	B747 B747F B777 B777F B787-9 A380 A330 A300
GM1 Container (AMA)	6,804 kg (410 kg)	96 x 125 x 96	General cargo	B747F (Main Deck Only) B777F (Center Loading Only)

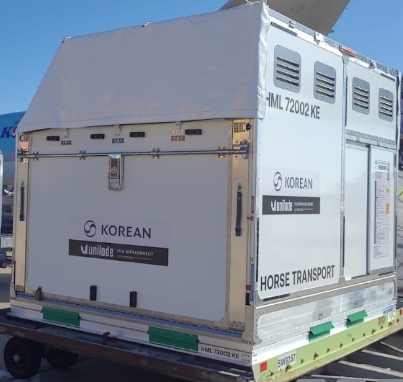

Horse Stall (HMA)	6,804 kg (945 kg)	96 x 125 x 94.5	Horses	B747F (Main Deck Only) B777F (Center Loading Only)
LD3-45 (AKH)	1,588 kg (73kg)	60.4 x 61.5 x 45	General Cargo	A321 B747 B747F B777 B777F B787-9 A380 A330 A300 (Lower deck Only)

ULD Type (IATA Code)	Max Capacity (Tare Weight)	Dimension (Inch)	Utility	AirCraft Type
88Inch Pallet (PAP, PAG)	6,033 kg (122 kg)	88 x 125	General Cargo	B747 / B747F / B747-Combi B777 / B777F / B787-9 / A380 A330 / A300
96Inch Pallet (PMC)	6,804 kg (130 kg)	96 x 125	General Cargo	B747 / B747F / B747-Combi B777 / B777F / B787-9 / A380 A330 / A300
Half Pallet (PLB, PLA)	PLB 3,175 kg (90 kg) PLA 3,175 kg (91 kg)	60.4 x 125	General Cargo	B747 / B747F / B747-Combi B777 / B777F / B787-9 / A380 A330 / A300 (Lower Deck Only)
16FT Pallet (PZA, PRA)	PZA 11,340 kg (387 kg) PRA 11,340 kg (415 kg)	96 x 196	General, Long & Heavy Cargo	B747F B747-Combi B777F (Main Deck Only)
20FTPALLET (PGE, PGF)	13,608 kg (555 kg)	96 x 238.5	General, Long & Heavy Cargo	B747F B747-Combi B777F (Main Deck Only)

Container Specifications

Korean Air provides Kooltainer(Korean Air cool container) Service for air transport of special shipments that are temperature sensitive!

Container Specifications	RKN Container (LD3 with temperature control)
ULD code	RKN
External Size (L/W/H)	61.5 x 60.4 x 64 inch
External Size (L/W/H)	109 cuft
Maximum Payload	1,588 kg
Minimum Chargeable Wt	755 kg
Temp control range	-15℃ ~ +15℃
Others	Forklift can be used

Temperature control is only available for dropping temperature below, not above, external temperature.

With a one-time setting, it is possible to maintain a constant temperature for up to 48 hours and with replenishment of battery and dry ice, delivery to destination at a constant temperature is also possible.

Thermostat equipped on container

Person in Charge : Terminal ULD Group | ICNKFGU@koreanair.com / 82-32-202-9363
