항공기 특성

기본정보

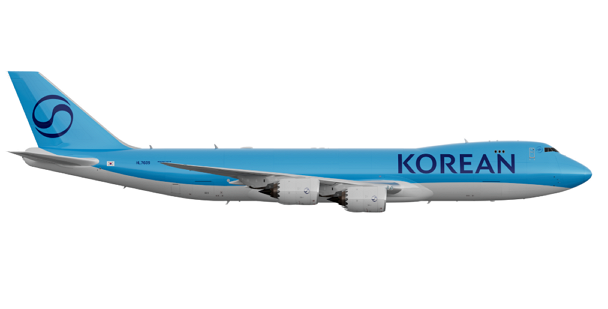

B747-8F



전장 76.3 최대 화물탑재량 130 t
전폭 68.5 m 최대 화물 탑재용적 27,542 cuft
전고 19.41 m 최대탑재 PALLET수 (Main Deck) 34 ea
최대 항속거리 8,130 km 최대탑재 LD3수 (Lower Deck) 40 ea
순항속도 1,030 (km/h)

 Cargo Compartments

Main Deck
NCD SCD TTL
7 Pallets POS A ~ D 27 Pallets POS E ~ X 34 Pallets

Lower Deck
Type Forward Aft TTL
Pallet 7 Pallets 5 Pallets + 2 Containers 12 Pallets + 2 Containers
Container (LD3) 22 Containers 18 Containers 40 Containers
A1 A2 NCD SCD
B747-8F-A1 B747-8F-A2 8F-NCD scd


A1, 1 Position A2, 1 Position B1 ~ DL/DR, 5 Positions EL/ER ~ X, 27 Positions

기본정보

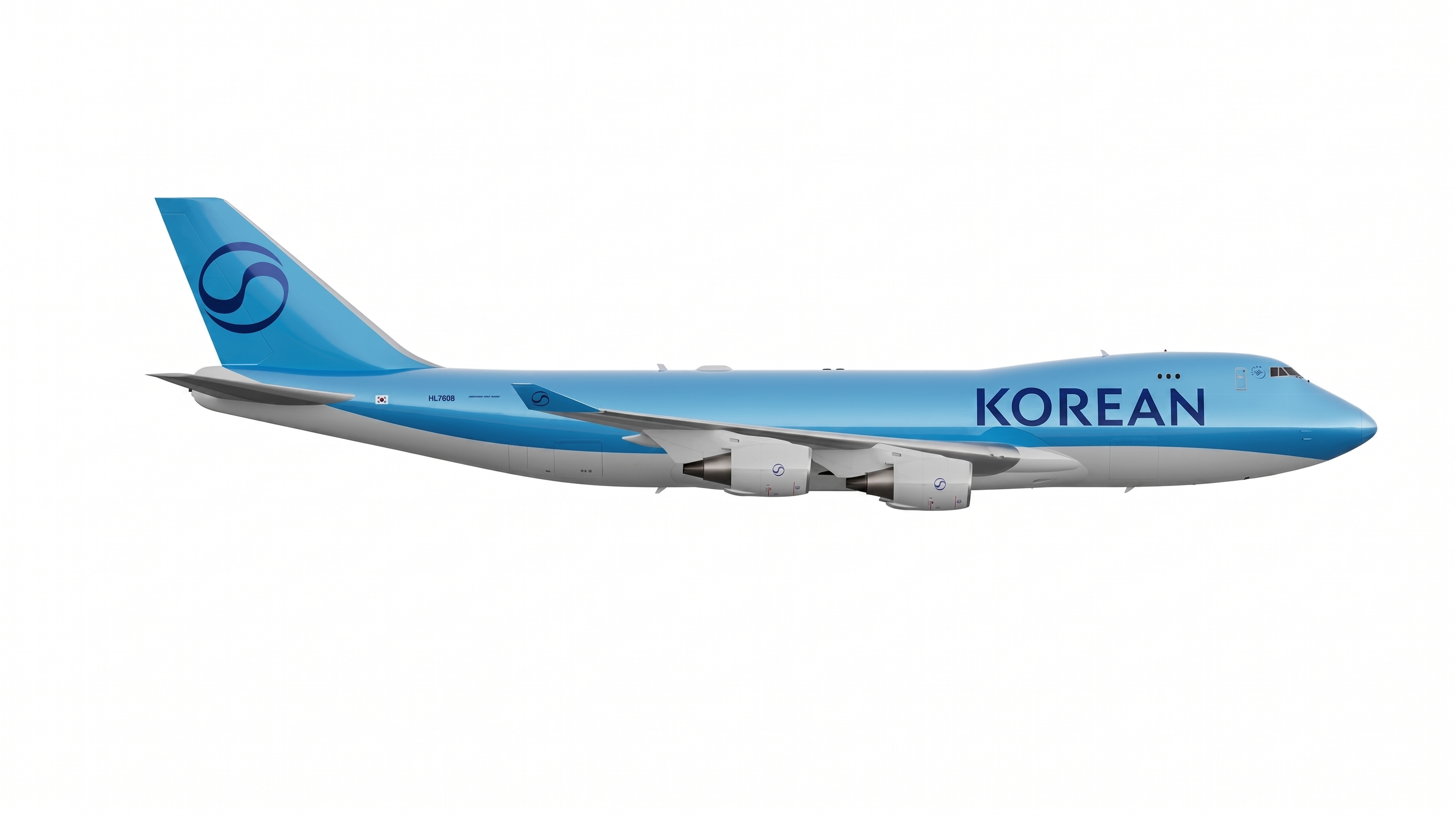

B747-400F/ERF



전장 70.66 m 최대 화물탑재량 117.55 t
전폭 64.44 m 최대 화물 탑재용적 24,923 cuft
전고 19.41 m 최대탑재 PALLET수 (Main Deck) 30 ea
최대 항속거리 8,415 km 최대탑재 LD3수 (Lower Deck) 32 ea
순항속도 916 (km/h)

 Cargo Compartments
Main Deck
NCD SCD TTL
7 Pallets POS A ~ D 23 Pallets POS E ~ T 30 Pallets

Lower Deck
Type Forward Aft TTL
Pallet 5 Pallets 4 Pallets + 2 Containers 9 Pallets + 2 Containers
Container (LD3) 16 Containers 16 Containers 32 Containers

A1 A2 NCD SCD
B747-400F-A1 B747-400F-A2 400F-NCD 400F-SCD
A1, 1 Position A2, 1 Position B1 ~ DL/DR, 5 Positions EL/ER ~ T, 23 Positions

기본정보

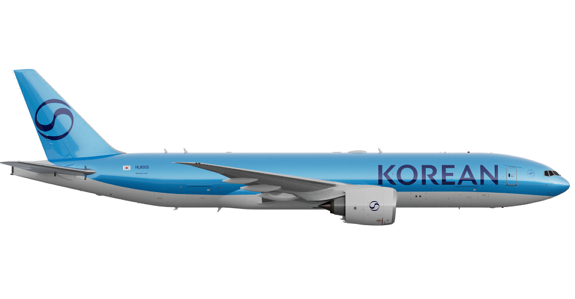

B777F



전장 62.94 m 최대 화물탑재량 103 t
전폭 64.8 m 최대 화물 탑재용적 21,822 cuft
전고 18.63 m 최대탑재 PALLET수 (Main Deck) 27 ea
최대 항속거리 8,640 km 최대탑재 LD3수 (Lower Deck) 32 ea
순항속도 1,028 (km/h)

 Cargo Compartments

Main Deck
SCB SCA NCR TTL
4 Pallets POS : AL/AR
PL/PR		 22 Pallets POS : B ~ M 1 Pallet R 27 Pallets

Lower Deck
Type Forward Aft TTL
Pallet 6 Pallets 4 Pallets 10 Pallets
Container (LD3) 18 Containers 14 Containers 32 Containers
SCA SCB NCR
B777F-SCA B777F-SCB B777F-NCR
BL/BR ~ ML/MR, 22 Positions AL/AR/PL/PR, 4 Positions R, 1 Position

747-8I
Type Forward Aft TTL
Pallet 7 Pallets 5 Pallets 12 Pallets
Container(LD3) 22 Containers 16 Containers 38 Containers

747-400
Type Forward Aft TTL
Pallet 5 Pallets 4 Pallets 9 Pallets
Container(LD3) 16 Containers 16 Containers 32 Containers

777-300
Type Forward Aft TTL
Pallet 8 Pallets N/A 8 Pallets
Container(LD3) 24 Containers 20 Containers 44 Containers

777-200
Type Forward Aft TTL
Pallet 6 Pallets N/A 6 Pallets
Container(LD3) 18 Containers 10 Containers 28 Containers

787-9
Type Forward Aft TTL
Pallet 6 Pallets 5 Pallets 11 Pallets
Container(LD3) 20 Containers 16 Containers 36 Containers

787-10
Type Forward Aft TTL
Pallet 7 Pallets 6 Pallets 13 Pallets
Container(LD3) 22 Containers 18 Containers 40 Containers

A380
Type Forward Aft TTL
Pallet 7 Pallets 3 Pallets 10 Pallets
Container(LD3) 22 Containers 12 Containers 34 Containers

A350
Type Forward Aft TTL
Pallet 6 Pallets 5 Pallets 11 Pallets
Container(LD3) 20 Containers 16 Containers 36 Containers

A330-200
Type Forward Aft TTL
Pallet 4 Pallets 3 Pallets 7 Pallets
Container(LD3) 14 Containers 8 Containers 22 Containers

A330-300
Type Forward Aft TTL
Pallet 6 Pallets 5 Pallets 11 Pallets
Container(LD3) 18 Containers 14 Containers 32 Containers

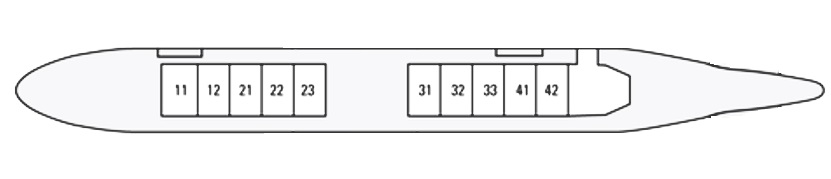

321
Type Forward Aft TTL
Pallet N/A N/A N/A
Container(LD3-45) 5 Containers 5 Containers 10 Containers

기종별 온도 및 환기

Temperature and Ventilation system of aircraft

[화물기]

A/C Type Ventilation Temperature Control Range (℃)
M/Deck Lower Deck COMPT M/Deck Lower Deck COMPT
FWD AFT Bulk FWD AFT Bulk
B747-8F YES 4 ~ 29
B747-400F YES 4 ~ 29
B777F YES 4 ~ 27

[여객기]

A/C Type Ventilation Temperature Control Range (℃)
FWD AFT Bulk FWD AFT Bulk
B747-8I NO YES NO 4~29
B777-200/300 4~10 / 18~24
NO YES
B787-9/10 YES NO YES 4~27 NO 13~21
A380 YES NO YES 5~25 NO 5 ~ 25(*)
A330-200/300 YES NO YES 5~25 NO 5 ~ 25(*)
A350-900 YES NO YES 5~25 NO 5 ~ 25(*)
A220-300 YES NO 15~25 NO
B737 NO NO
A321 NEO NO NO

(*)Note: The bulk cargo temperature control system cannot cool down the temperature.

생동물 수송 최적 온도

Temperature Range for Live animals

Animal Minimum ℃ Maximum ℃
Dog 10 27
Cat 7 24
Horse 10 19
Pig 20 26
Sheep 5 20
Baby chicks 14 23
Cow/Cattle 12 25
Goat 0 25
Bee/Butterfly 5 30
Live Tropical Fish 20 27
Worms 2 7
Clams 20 25
Frog 20 27
